INTEGRAL FLASHING 'SMART TRAY'

This picture shows an installation of the integral flashing SMART TRAY© we fitted over the Flat Roof of the Cooper Art Gallery at Dundee University Scotland, wall was built in mock Flemish garden wall bond employing snap headers for the pattern.

INTEGRAL FLASHING 'SMART TRAY'

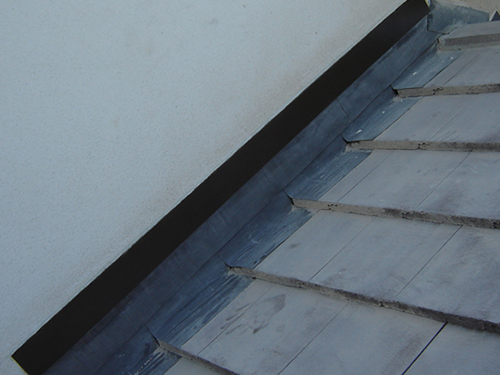

This picture shows the integral flashing SMART TRAY© roof plane installed into a through coloured rendered wall on a newly built care home in the Melksham Area - Wiltshire over the feature three storey Bay window roof.

INTEGRAL FLASHING 'SMART TRAY'

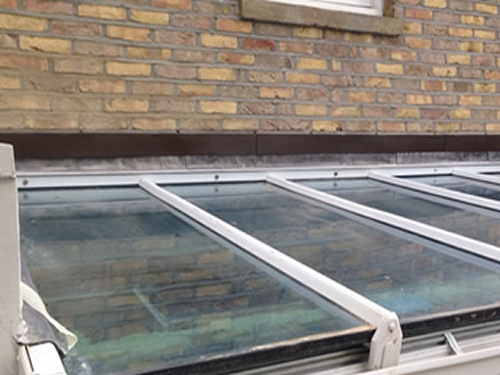

This picture shows the integral flashing SMART TRAY© installed over a large extension Roof / Glass Area in Kingston Upon Thames, Surrey

INTEGRAL FLASHING 'SMART TRAY'

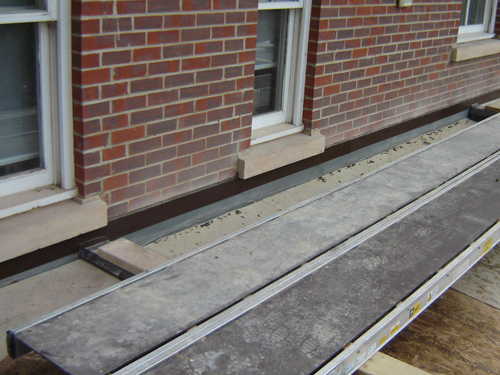

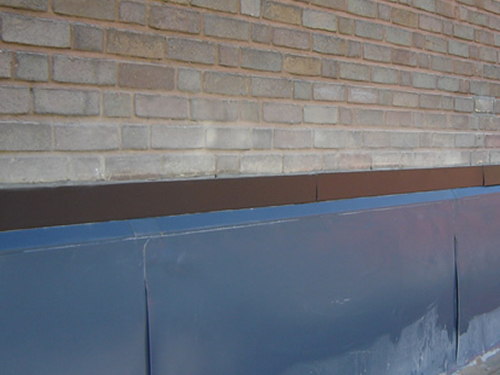

This is one view of an installation of over 100 Linear metres of the integral flashing SMART TRAY© installed over the Roof / Gutter area on the Matthew Building, Dundee University.

INTEGRAL FLASHING 'SMART TRAY'

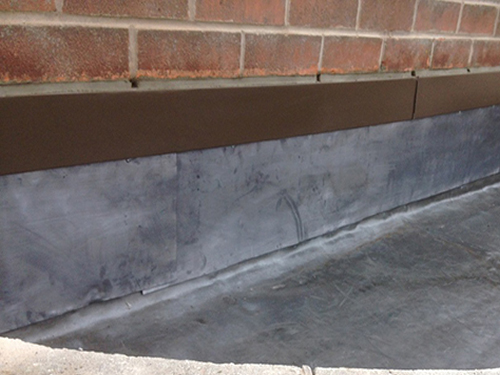

This picture is another view of the long Roof / Gutter on the Matthew Building Dundee University where we fitted the integral flashing SMART TRAY© during the Roof Refurbishment works for Thomas Johnson

INTEGRAL FLASHING 'SMART TRAY'

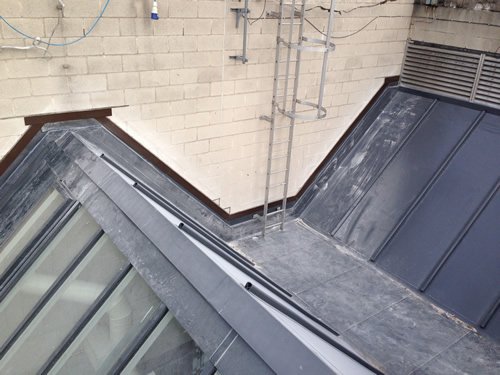

This picture shows the integral flashing Smart Tray installed over new roof windows, on the main roof area of Dundee University (phase 3 refurbishments) all making good to the roof area under the trays was done by ourselves once the trays were fully fitted.

INTEGRAL FLASHING 'SMART TRAY'

This picture gives another view of the extensive installation we carried out at Dundee University.

INTEGRAL FLASHING 'SMART TRAY'

This Picture shows the integral flashing SMART TRAY© installed over a feature Bay Window in Surrey.

INTEGRAL FLASHING 'SMART TRAY'

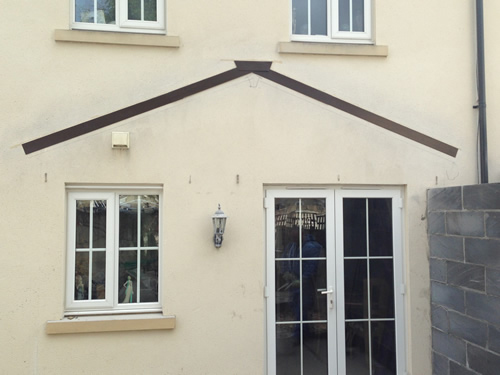

This picture shows the integral flashing SMART TRAY© installed in to a K renderd wall prior to fitting the conservatory structure, as shown there is no damage to the render finish and all making good to the cutting on the wall is done using K rend also leaving a neat unobtrusive finish once the works are completed.

INTEGRAL FLASHING 'SMART TRAY'

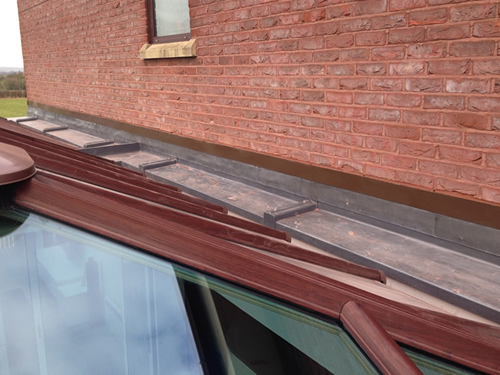

Integral flashing SMART TRAY© installed over an existing Orangery , on a large private detached property in Manchester, length 12m, wall above tray left undisturbed , all making good - done with coloured mortar to match existing finish.

STEPPED SLIMLINE 'SMART TRAYS'

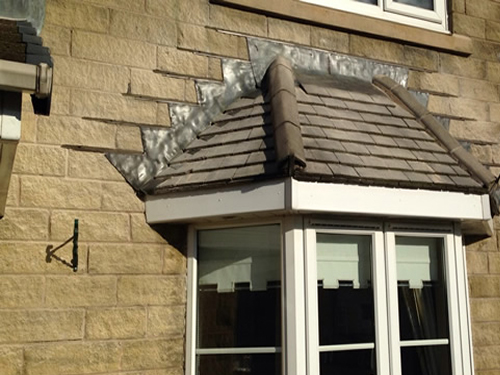

Stepped Slimline SMART TRAYS© fitted above existing Lead flashings, over a feature Bay window, location Padiham, Lancashire.

INTEGRAL FLASHING 'SMART TRAY'

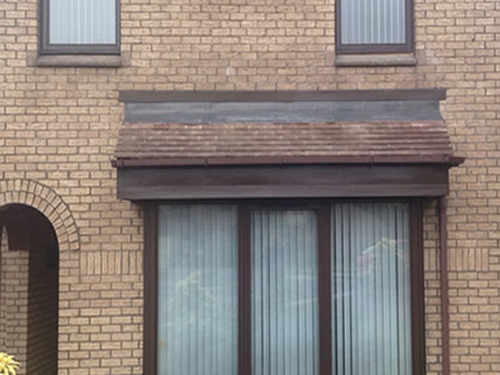

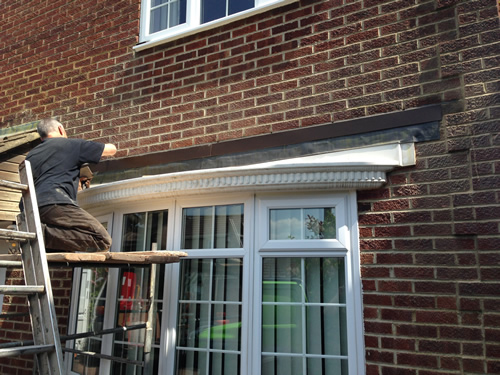

Integral flashing SMART TRAY© fitted over large Bay window, Erskine district of Glasgow.

INTEGRAL FLASHING 'SMART TRAY'

Integral flashing SMART TRAY© installed over sunroom roof , whilst carrying out full perimeter cavity wall tray installation on property, location Hackney, London.

SLIMLINE 'SMART TRAYS'

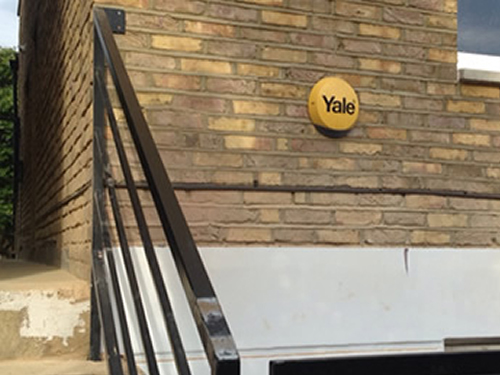

Part of the perimeter installation using slimline SMART TRAYS© on the property in Hackney, London.

INTEGRAL FLASHING 'SMART TRAY'

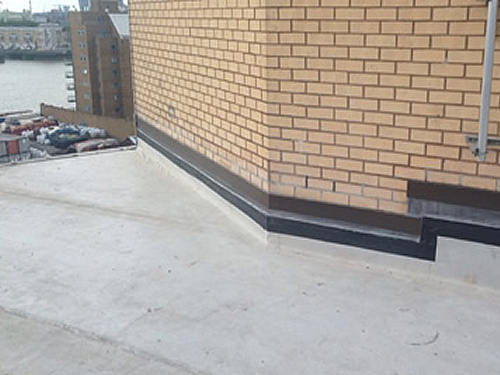

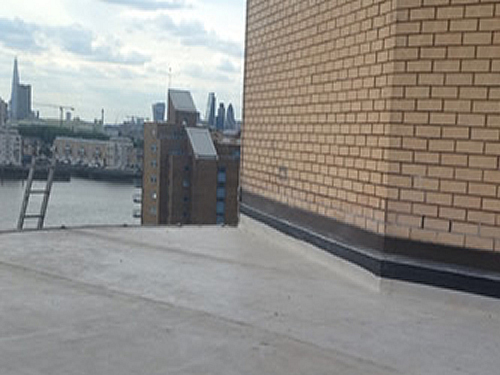

Integral flashing SMART TRAY© fitted over roof of large sunroom , penthouse apartment , Bellgate Place, Canary Wharf, Isle of Dogs , London.

INTEGRAL FLASHING 'SMART TRAY'

Another view of the Canary Wharf installation showing the New lead flashing over lapped with The SMART TRAYS© integral flashing profile to form the complete seal. As the building was splayed the trays were cut and fabricated to suit the angles on site, Then all bonded together during the installation processs.

INTEGRAL FLASHING 'SMART TRAY'

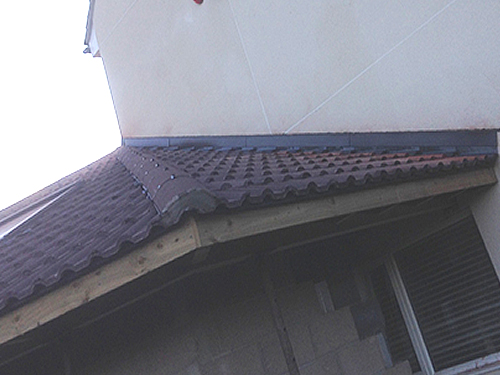

Integral flashing SMART TRAY© installed over large extension roof in to K renderd wall, Yeovil , Somerset. Note- no damage done to surrounding render finish.

INTEGRAL FLASHING 'SMART TRAY'

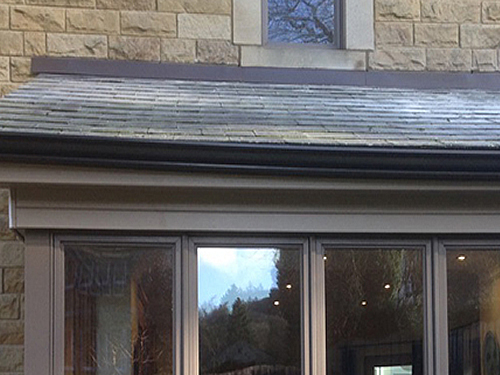

Integral flashing SMART TRAY© installed in to coursed stone wall over kitchen extension roof, detached house , Ilkley Yorkshire

INTEGRAL FLASHING 'SMART TRAY'
